Adding Your Site

The first step in setting up your network is to add it to the DNSFilter Dashboard, which is located at app.dnsfilter.com for most customers. (If a different link was provided in your welcome email, use that one.)

Adding a network to the dashboard is essential, because DNSFilter operates a customer-only, closed resolver. Until your site is added, we won't recognize the queries and respond to them.

❗️

Add your external IPs to the dashboard before making changes to your network

The first step in configuring DNSFilter is adding your IP information as a "Site" on our dashboard. Otherwise, we will not expect traffic from your location and will deny DNS requests until the site is added. However, if you've accidentally reversed this order and made changes to your network before adding them in the dashboard, we always whitelist app.dnsfilter.com so that you can easily correct this

Adding Your Site

A Site is considered a single, physical location (or "network"), which usually has one egress IPegress IP - An egress IP is the internet-facing, public IP address for a network. There can be multiple IPs for a single network if it is using failover or multiple WAN links. address, but may have more if utilizing multiple internet connections, or if you're a larger organization with an IP subnet.

Adding a Site is the quickest and most comprehensive way to be protected with DNSFilter.

Each Site can only have one PolicyPolicy - a unified collection of content filtering categories, security categories, and whitelist/blacklist entries or Filtering ScheduleFiltering Schedule - one or more policies which have been set to changeover at specific intervals. (Example. block social media until after 5pm) assigned, unless utilizing the NAT IPs feature (which allows you to assign separate policies by LAN subnet).

When you sign-in for the first time, you will be automatically placed in the Deployments -> Sites section of the Dashboard.

Add the following information to your Site:

  • Name (ex: NYC Office)
  • Physical Address
  • IP Address(es) or Dynamic DNS Hostname (see notices below). If your site has more than one IP address (multiple WAN links, failover links etc) you should add these additional IPs as well.

If you have only one WAN IP address, you can use the Fill Current IP button to add the IP address of your current location.

📘

Dynamic IP Addresses / Dynamic DNS

If your Site has a dynamic IP address, which is common with consumer-grade internet connections, Dynamic DNS must be utilized to ensure DNSFilter always has the correct IP address for your network. If the IP address should change and Dynamic DNS is not utilized, it will result in DNS downtime, as DNSFilter does not serve DNS requests to unknown IP addresses for security reasons.

📘

IP Subnets / CIDR Blocks

The Dashboard accepts IP subnets up to /24. You may enter the block directly into the IP address field (ex: 45.66.23.0/24). For large blocks, contact support and we can add them to your account on the backend.

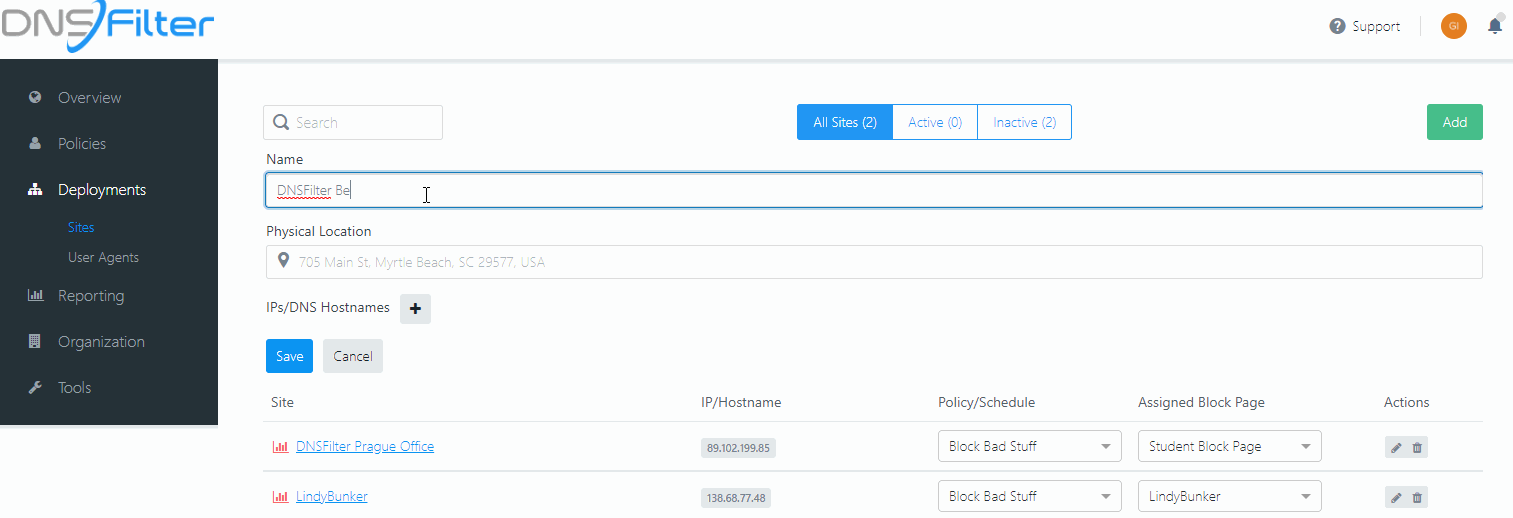

Adding a site to the dashboard

Create and Assign a Filtering Policy

Creating a Policy

The final step to add your site to the dashboard is to create a Filtering Policy and assign it to that location. This will determine what is allowed/blocked on your network, as well as what the users on that network see when they surf to a blocked website.

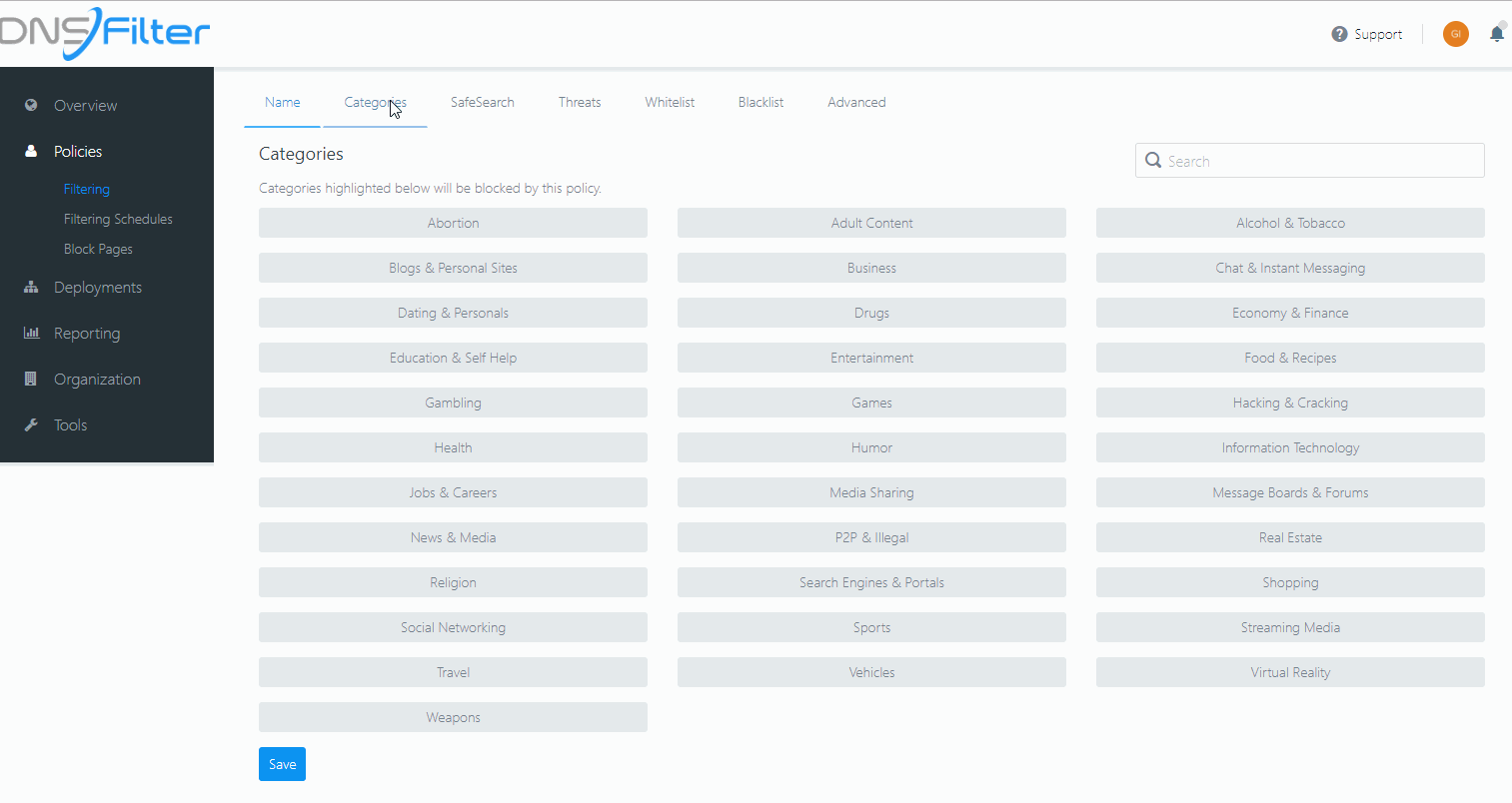

Begin by adding a name to the policy, then use the tabs at the top to set filtering categories, safesearch settings, threat categories, and whitelist/blacklist entries. When you click on a category, it will turn red and show an 🚫 icon to show that blocking is active for that category. Once you are content with your settings, you may save your policy.

Setting up a filtering policy

Assigning a Policy

Up to this point, you have added your network and a policy in the dashboard. All that remains is to assign your newly-created policy to your network.

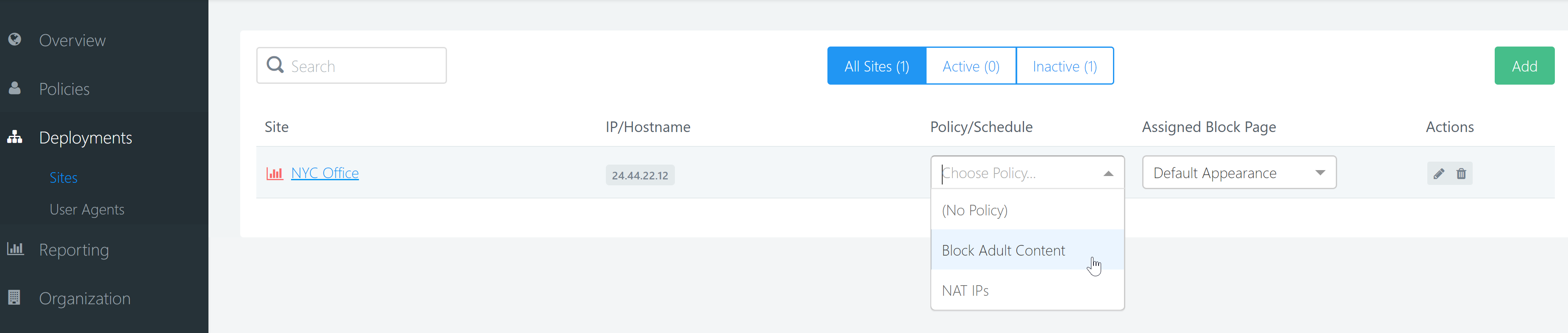

Navigate to the Deployments -> Sites section on the dashboard. Then along the line for the site there will be a dropdown for "Policy/Schedule". Click to select your desired policy.

Congratulations, your DNSFilter account is now setup to receive and filter traffic from your network!

At this point, we recommend setting one of your PCs to point to us in order to test your connection.

Assigning a policy
